High-Precision Reciprocating Metering Pumps
reciprocating METERING PUMP of high precision

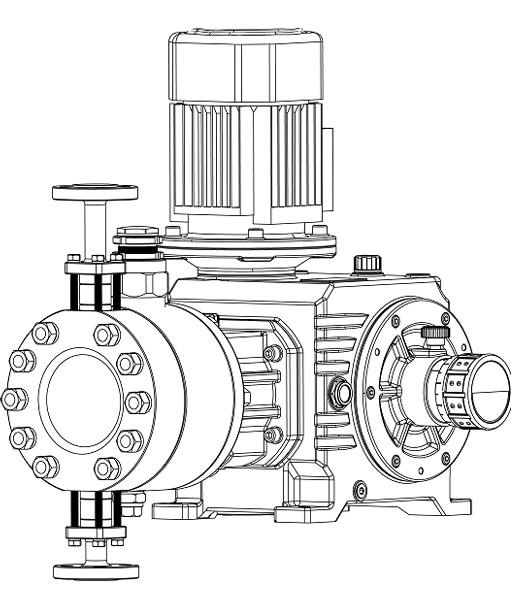

The Kistone P series metering pump is a reciprocating pump in which the pumped liquid is displaced by a piston. This means that the piston and piston seals are in direct contact with the liquid. Thanks to this technology, WRS offers a cost-effective solution for simple dosing tasks with a flow rate of up to 3000 l/h and an outlet pressure of up to 500 bar. WRS sealing technologies for reciprocating pumps allow injecting liquids into processes with a high degree of discharge accuracy at high pressure without leaks.
Applications
- Drinking water treatment
- Sewage treatment
- Pool water treatment
- Boiler water treatment
- On-site cleaning system (CIP)
- Cooling water treatment
- Waste water treatment
- Flushing systems
- Chemical industry
- Ultrafiltration and reverse osmosis processes
- Irrigation
- Pulp and paper industry
Features
- Designed in accordance with API675
- An additional pump head can be added for special purposes
- WRS patented sealing technology ensures high discharge accuracy at high pressure without leaks
- Additional thermal insulation can be added for hot/cold mode
- The unique design of the sealing ring extends the service life of the pump seals and requires less maintenance
- Robust, simple and easy-to-maintain design
GENERAL TECHNICAL CHARACTERISTICS OF THE PUMP
- Flow rate: 1 l/h ≈ 3000 l/h
- Max. pressure: up to 500 bar
- Max. operating temperature: +200 °C
- Motor: 380 V, 50/60 Hz, IP55, class F
- Accuracy: ±1%
- Possibility to install explosion-proof motor, variable frequency motor

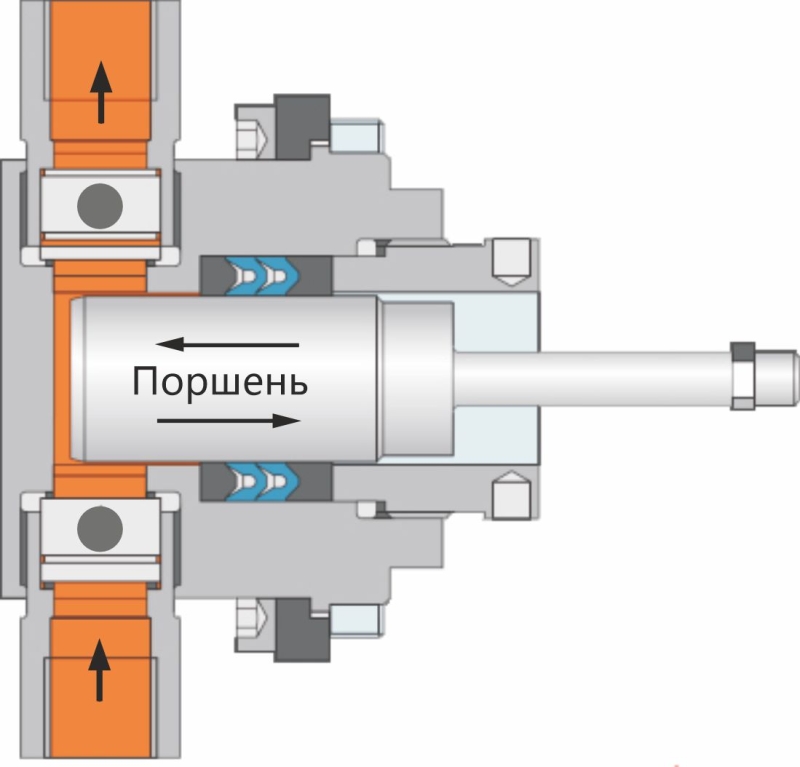

cross-section drawing of the flow part
model PS (50 Hz)
| Piston diameter (mm) | Flow rate (l/h) | Pressure (bar) | Stroke per minute (min⁻¹) | Connection | Power (kW) |
| 06 | 1 | 500 | 96 | Ф6 Welded joint | 0.37 |
model PL (50 Hz)
| Piston diameter (mm) | Flow rate (l/h) | Pressure (bar) | Stroke per minute (min⁻¹) | Connection | Power (kW) |
| 12 | 15 | 500 | 96 | Ф10 Welded joint | 1.5 |
model PM (50 Hz)
| Piston diameter (mm) | Flow rate (l/h) | Pressure (bar) | Stroke per minute (min⁻¹) | Connection | Power (kW) |
| 08 | 6.5 | 500 | 96 | Ф6 Welded joint | 0.37 |
