Hydraulic Dosing Pumps

Hydraulic Diaphragm Dosing Pump

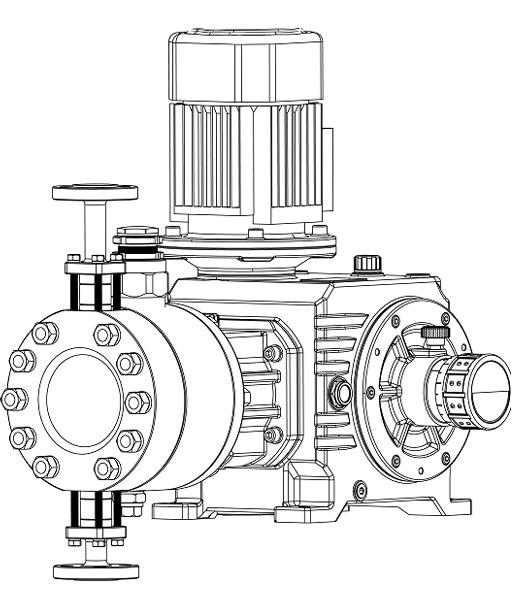

The Draulico H series dosing pump is the most high-performance hydraulic diaphragm dosing pump produced by WRS. Inside the pump, the diaphragm moves back and forth under the action of hydraulic fluid, while the fluid itself is pumped by a piston with a reciprocating motion. Thus, one piston pump drives another — a diaphragm pump.

On one side of the diaphragm there is driving hydraulic fluid, and on the other side there is the fluid being pumped. Under the action of the piston, the driving fluid moves the diaphragm and, in turn, pumps the fluid on the other side. This arrangement eliminates any contact between the pumping element and the pumped fluid. This helps to prevent leaks and makes the pump suitable for handling expensive, explosive, or toxic fluids.

• Excellent pressure and self-priming capability
• Ability to run dry
• Resistance to abrasive wear and corrosion
• Consistent pumping efficiency
• Adjustable flow rate at any time
• Heat resistant
• High dosing accuracy
• Multi-pump head for high flow rates
• Suitable for Zone 1 IIC T4

• Wide range of ambient temperatures
• Wide range of fluid temperatures
• Several types of pump head connections available
• Variable frequency drive control available
• Stroke length control available
• Heating/cooling system can be added as an option
• Additional components available
