Diaphragm Pressure Gauge
Dial diameter: φ60 mm / φ100 mm
Accuracy class: 6%
Measuring range: 0–1.6 MPa
Operating temperature: −20 to +70 °C
Connection material: copper alloy
Diaphragm material: PP / PVC / PTFE / EPDM
Thread size: 1/4″, 3/8″, 1/2″, 3/4″, 1″
Protection rating: IP54
Filling liquid: silicone oil
Working pressure:
Static load: 3/4 of the full-scale value
Cyclic load: 2/3 of the full-scale value

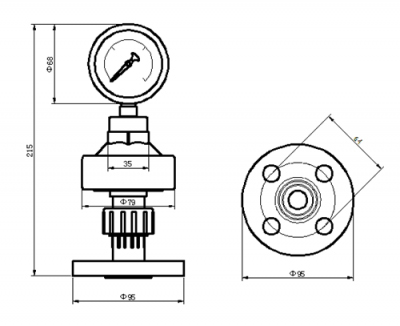

| Model | Body material | Diaphragm material | D (mm) | H (mm) | Connection |
|---|---|---|---|---|---|
| 786-U | UPVC | FPM, PTFE | 79 | 161 | G1/2″, G1/4″ female thread or DN15, DN20 coupling |
| 786-P | PP | FPM, PTFE | 79 | 161 | G1/2″, G1/4″ female thread |
| 786-V | PVDF | PTFE | 79 | 161 | G1/2″, G1/4″ female thread |
